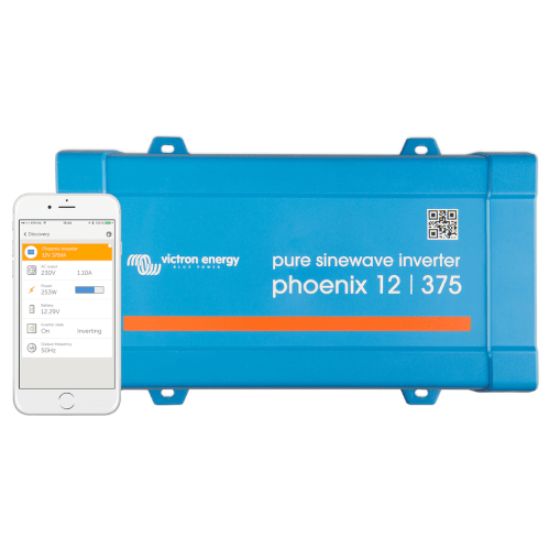

Victron Energy Phoenix Inverter 12/375 12V 375VA VE.Direct IEC | PIN121371100

Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

Features

VE.Direct communication port
The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)


• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels


• Low battery voltage cut-off and restart levels


• Dynamic cut-off: load dependent cut-off level


• Output voltage 210 – 245V


• Frequency 50 Hz or 60 Hz


• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load and alarms





•
•

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

DC connection with screw terminals

No special tools needed for installation.
