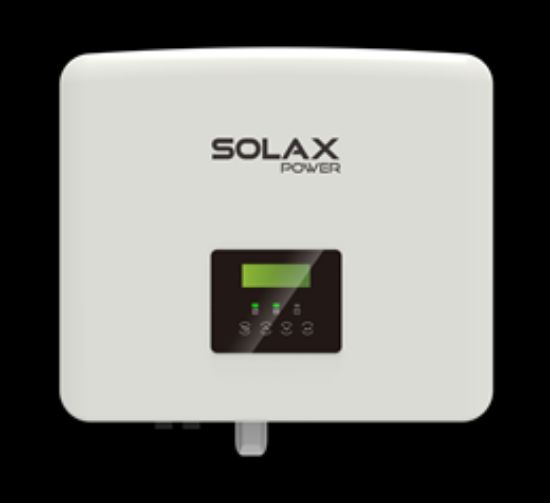

Solax X1 Gen 4 Hybrid Inverter 5.0kW | X1 G4- Hybrid 5.0 D

The inverter can be used to optimise self-consumption, stored in batteries for future use or fed into the public grid. Solax X1-G4 inverters incorporate the award-winning X-ESS all-in-one system, which facilitates wide temperature tolerance, quick installation and convenient online monitoring.

Product features

Highly efficient

• 150% PV oversized and 110% overload output
• Maximum 120% overload output
• Higher efficiency on charging and discharging, up to 97.0%
• Built-in shadow tracking function

Economic

• Maximum 16A DC input current, support for high power solar panel
• Store the surplus energy from PV to battery
• Low start output voltage makes inverter longer working time
• Less energy loss on battery to inverter

Intelligent

• Switchover time <10ms
• Quick configuration with U-disk
• Lithium & Lead-acid battery compatible
• CT compatible, loads respond within 0.3s
• Intelligent loads management (e.g., Heat pump)
• On & Off-grid parallel function, up to 15kW
• 5 work modes, 2 charging periods available
• VPP ready, ancillary service in power market
